DirectX 11 shader
Uses the Geometry shader stage
Video example
Shader code
VS_DATA MainVS(VS_DATA vsData)
{
return vsData;
}
//******************
// GEOMETRY SHADER *
//******************
void CreateVertex(inout TriangleStream triStream, float3 pos, float3 normal, float4 color)
{
GS_DATA temp = (GS_DATA)0;
//Step 1. Create a GS_DATA object
float4 Position = float4( pos, 1);
temp.Position = mul(Position, m_MatrixWorldViewProj );
//Step 2. Transform the position using the WVP Matrix and assign it to (GS_DATA object).Position (Keep in mind: float3 -> float4)
float4(0, 0, 0, 1);
temp.Normal = mul (normal, m_MatrixWorld) ;
//Step 3. Transform the normal using the World Matrix and assign it to (GS_DATA object).Normal (Only Rotation, No translation!)
temp.Color = color;
//Step 4. Assign texCoord to (GS_DATA object).TexCoord
triStream.Append(temp);
//Step 5. Append (GS_DATA object) to the TriangleStream parameter (TriangleStream::Append(...))
}
[maxvertexcount(72)]

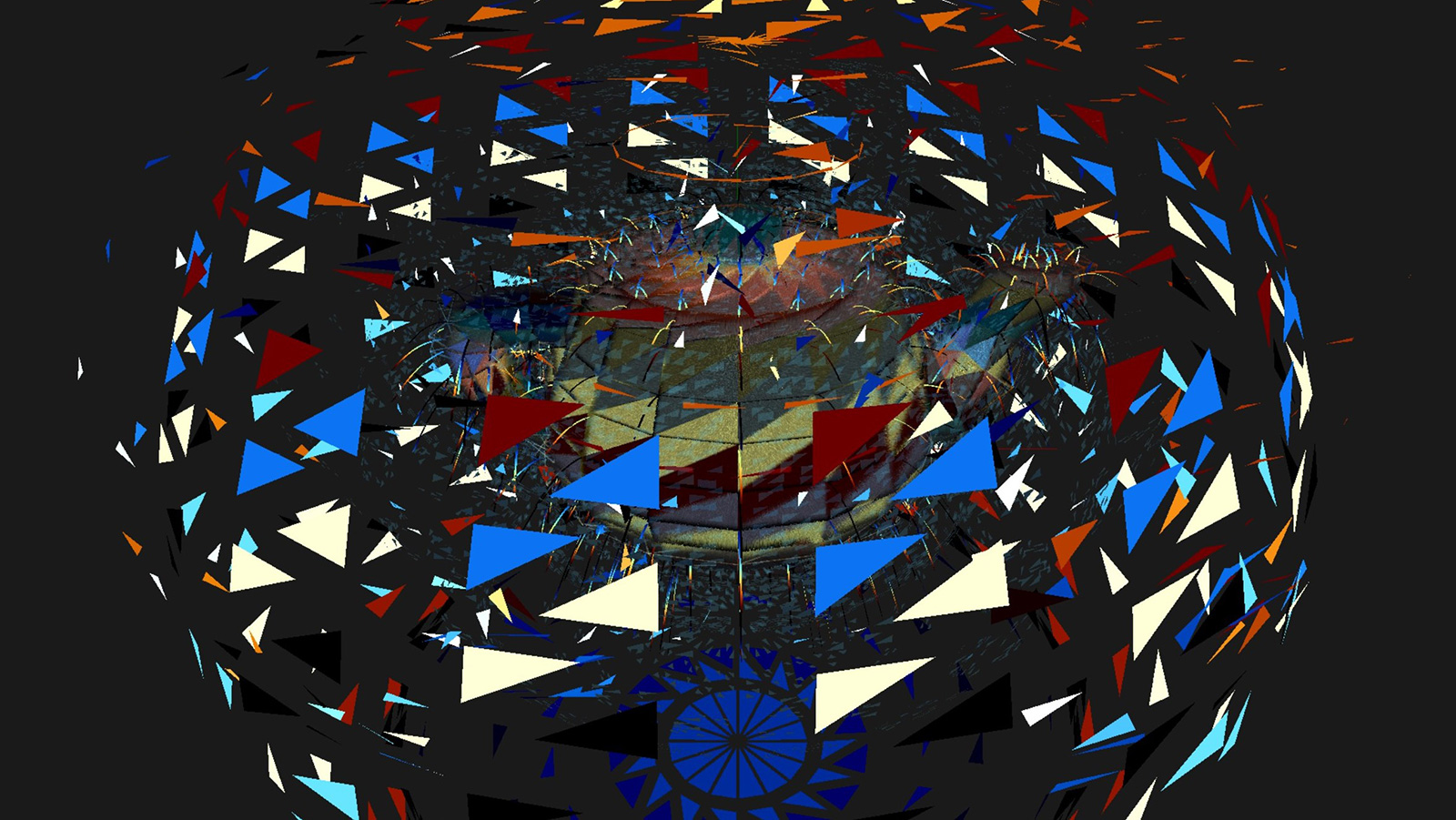

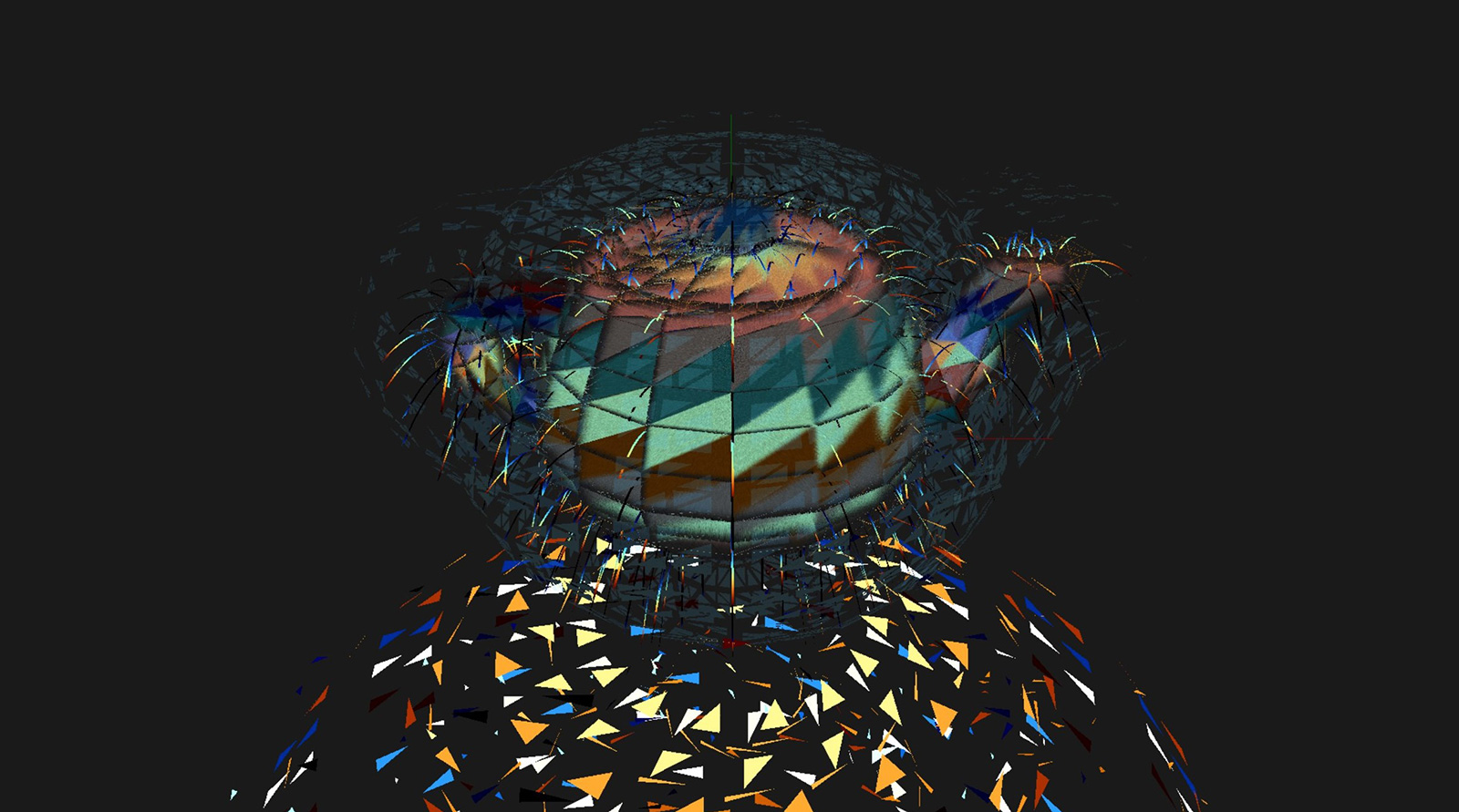

void ExplosionGenerator(triangle VS_DATA v[3], inout TriangleStream triStream)
{
float s = 10;
float3 explpos[3];
float3 g = float3(0, -1, 0);
float4 color = 0;
float Speed = 50;
float SpeedGrav = 2.5 + (time*time*time*time) ;
float brightness = 1;
float3 basePoint = (v[0].Position + v[1].Position + v[2].Position) / 3;
float3 avgnormal = (v[0].Normal + v[1].Normal + v[2].Normal) / 3;
color.r += cos((v[0].Position.y ) + (time *s)) * brightness;
color.g += cos((v[0].Position.y ) - 0.5 + (time*s)) * brightness;
color.b += cos((v[0].Position.y ) - 1 + (time*s)) * brightness;
brightness = 1;
color.rgb += abs(0.5+0.3*cos((v[0].Position.y+10 ) + ((time)*s)) * brightness);
color.rgb *= 1;
color.a = 1;
brightness = 0.2;
Speed = Speed / (1 + (time));
basePoint = basePoint + (Speed *(avgnormal * time)) + (SpeedGrav*g);
for (int c = 0; c < 3; c++)
{
CreateVertex(triStream, v[c].Position + (Speed *(avgnormal * time)) + (SpeedGrav*g), v[c].Normal, color);
}
triStream.RestartStrip();
//One Manual tesselation step
color.rgb = abs(cos((v[0].Position.y + 10) + ((time)*s)) * brightness);
float3 vec[3] = { v[1].Position - v[0].Position ,v[2].Position - v[1].Position, v[0].Position - v[2].Position };
float3 n[3] = { v[0].Position + ((vec[0]) * 0.5) , v[1].Position + (vec[1] * 0.5), v[2].Position + (vec[2] * 0.5) };
float3 midpoint[4] =
{
(v[0].Position + n[0] + n[2]) / 3,
(n[0] + v[1].Position + n[1]) / 3,
(n[0] + n[1] + n[2]) / 3,
(n[2] + n[1] + v[2].Position) / 3
};
s = 0.8*sin(time);
color.a = sin(time) * abs(sin(8 * time)) + abs(0.2*sin(32 * time) + 0.2);
color.a *= 0.2;
color.a += 0.02;
float3 offsetscalar = 1;
if (s <= 0.001) { s = -0.01; color.a = abs(0.07*sin(time * 4)) + abs(0.09*sin(time * 8 + 5)); offsetscalar *= 0.12; }
color.b += 0.35;
color.g += 0.45;
color.rgb += 0.7;
color.r -= 0.5;
color.g -= 0.5;
s = 0.8*sin(time); //Extrusion Distrance from midpoint (Grow and shrink)
float3 offsets[12] =
{
(s*(midpoint[0] -v[0].Position )),
(s*(midpoint[0] - n[0])),
(s*(midpoint[0] - n[2])),
(s*(midpoint[1] - n[0])),
(s*(midpoint[1] - v[1].Position)),
(s*(midpoint[1] - n[1])),
(s*(midpoint[2] - n[0])),
(s*(midpoint[2] - n[1])),
(s*(midpoint[2] - n[2])),
(s*(midpoint[3] - n[2])),
(s*(midpoint[3] - n[1])),
(s*(midpoint[3] - v[2].Position))
};
s = (0.8*sin(time));
float3 offset = offsetscalar * 15 * avgnormal * s*(1 + (sin(time * 4)));
CreateVertex( triStream, v[0].Position + offset + offsets[0], v[0].Normal, color);
CreateVertex(triStream, n[0] + offset + offsets[1], v[0].Normal, color);
CreateVertex(triStream, n[2] + offset + offsets[2], v[0].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[3], v[1].Normal, color);
CreateVertex(triStream, v[1].Position + offset + offsets[4], v[1].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[5], v[1].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[6], avgnormal, color);
CreateVertex(triStream, n[1] + offset + offsets[7], avgnormal, color);
CreateVertex(triStream, n[2] + offset + offsets[8], avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[2] + offset + offsets[9], v[2].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[10], v[2].Normal, color);
CreateVertex(triStream, v[2].Position + offset + offsets[11], v[2].Normal, color);
triStream.RestartStrip();
offset = offsetscalar * (avgnormal * 17 ) * s * (1+(sin(27 + time * 4)));
CreateVertex(triStream, v[0].Position + offset + offsets[0], v[0].Normal, color);
CreateVertex(triStream, n[0] + offset + offsets[1], v[0].Normal, color);
CreateVertex(triStream, n[2] + offset + offsets[2], v[0].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[3], v[1].Normal, color);
CreateVertex(triStream, v[1].Position + offset + offsets[4], v[1].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[5], v[1].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[6], avgnormal, color);
CreateVertex(triStream, n[1] + offset + offsets[7], avgnormal, color);
CreateVertex(triStream, n[2] + offset + offsets[8], avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[2] + offset + offsets[9], v[2].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[10], v[2].Normal, color);
CreateVertex(triStream, v[2].Position + offset + offsets[11], v[2].Normal, color);
triStream.RestartStrip();
offset = offsetscalar * (avgnormal *18)* s * ( 1+( sin(12 + time * 4)));
CreateVertex(triStream, v[0].Position + offset + offsets[0], v[0].Normal, color);
CreateVertex(triStream, n[0] + offset + offsets[1], v[0].Normal, color);
CreateVertex(triStream, n[2] + offset + offsets[2], v[0].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[3], v[1].Normal, color);
CreateVertex(triStream, v[1].Position + offset + offsets[4], v[1].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[5], v[1].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[6], avgnormal, color);
CreateVertex(triStream, n[1] + offset + offsets[7], avgnormal, color);
CreateVertex(triStream, n[2] + offset + offsets[8], avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[2] + offset + offsets[9], v[2].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[10], v[2].Normal, color);
CreateVertex(triStream, v[2].Position + offset + offsets[11], v[2].Normal, color);
triStream.RestartStrip();
offset = offsetscalar * (avgnormal * 19)* s * (1+( sin(19 + time * 4)));
CreateVertex(triStream, v[0].Position + offset + offsets[0], v[0].Normal, color);
CreateVertex(triStream, n[0] + offset + offsets[1], v[0].Normal, color);
CreateVertex(triStream, n[2] + offset + offsets[2], v[0].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[3], v[1].Normal, color);
CreateVertex(triStream, v[1].Position + offset + offsets[4], v[1].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[5], v[1].Normal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offset + offsets[6], avgnormal, color);
CreateVertex(triStream, n[1] + offset + offsets[7], avgnormal, color);
CreateVertex(triStream, n[2] + offset + offsets[8], avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[2] + offset + offsets[9], v[2].Normal, color);
CreateVertex(triStream, n[1] + offset + offsets[10], v[2].Normal, color);
CreateVertex(triStream, v[2].Position + offset + offsets[11], v[2].Normal, color);
triStream.RestartStrip();
//Fins
float3 FinLength = 0.3;
float3 normal[3] = { cross(v[0].Normal,vec[0]), cross(v[1].Normal,vec[1]) , cross(v[2].Normal,vec[2]) };
color.a = 0.2 * abs(sin(time * 4));
CreateVertex(triStream, v[0].Position, normal[0], color);
CreateVertex(triStream, v[1].Position, normal[1], color);
CreateVertex(triStream, FinLength * v[0].Normal + v[0].Position, normal[0], color);
CreateVertex(triStream, FinLength * v[1].Normal + v[1].Position, normal[1], color);
triStream.RestartStrip();
CreateVertex(triStream, v[1].Position, normal[1], color);
CreateVertex(triStream, v[2].Position, normal[2], color);
CreateVertex(triStream, FinLength * v[1].Normal + v[1].Position, normal[1], color);
CreateVertex(triStream, FinLength * v[2].Normal + v[2].Position, normal[2], color);
triStream.RestartStrip();
CreateVertex(triStream, v[2].Position, normal[2], color);
CreateVertex(triStream, v[0].Position, normal[0], color);
CreateVertex(triStream, FinLength * v[2].Normal + v[2].Position, normal[2], color);
CreateVertex(triStream, FinLength * v[0].Normal + v[0].Position, normal[0], color);
triStream.RestartStrip();
color.a = 0.002;
CreateVertex(triStream, v[0].Position, v[0].Normal, color);
CreateVertex(triStream, v[1].Position, v[1].Normal, color);
CreateVertex(triStream, v[2].Position, v[2].Normal, color);
triStream.RestartStrip();
}
float3 CalculateBezierPoint(float t, float3 p0, float3 p1, float3 p2, float3 p3)
{
float u = 1 - t;
float tt = t * t;
float uu = u * u;
float uuu = uu * u;
float ttt = tt * t;
float3 p = uuu * p0;
p += 3 * uu * t * p1;
p += 3 * u * tt * p2;
p += ttt * p3;
return p;
}
[maxvertexcount(93)]

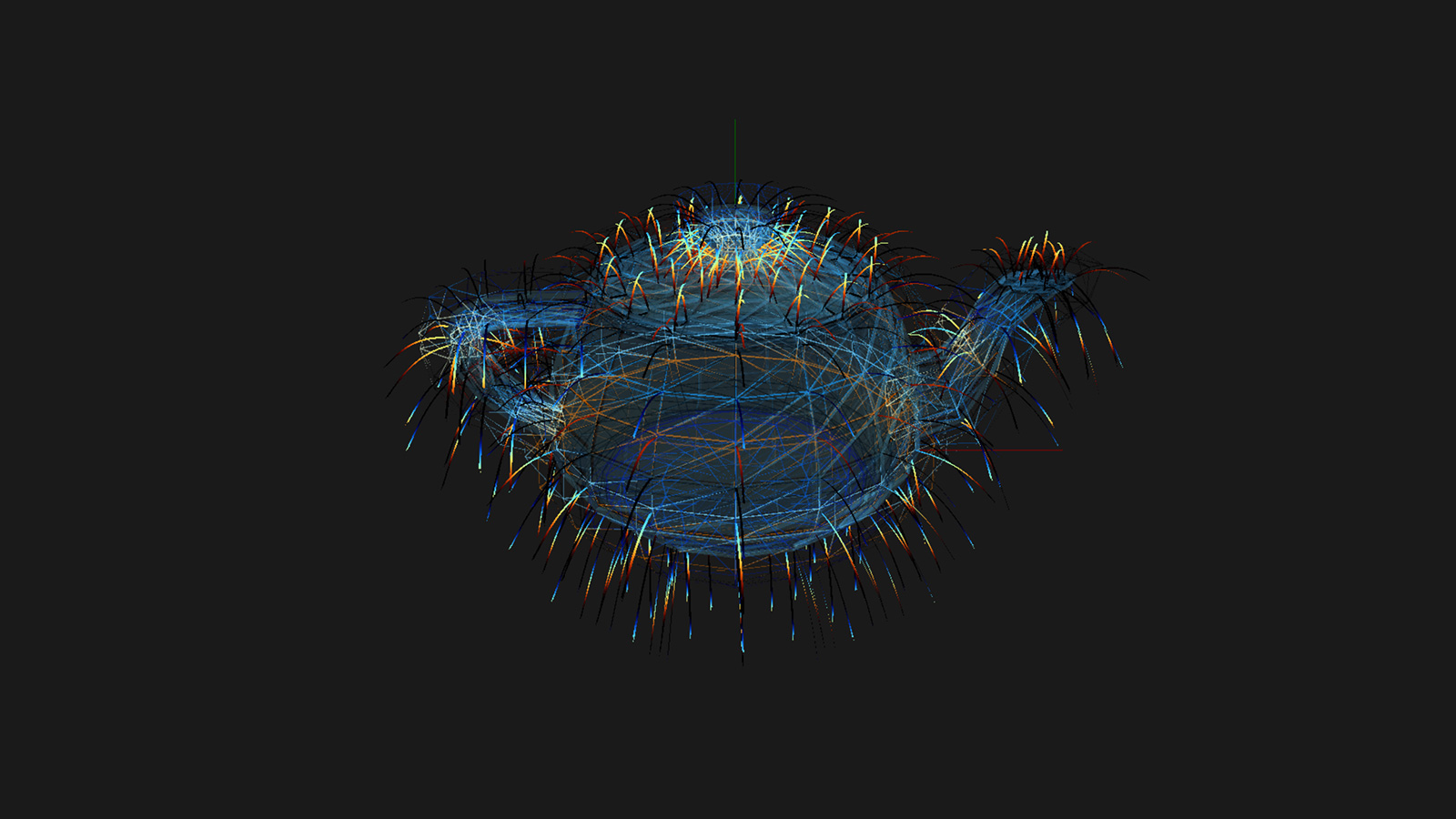

void BezierGenerator(point VS_DATA v[1], inout TriangleStream triStream)
{
float3 normal = v[0].Normal;
float4 color = { 0.8,0.8,0.8,1 };
float3 square[3] = { 0.5,0,0 , 0,0,-0.5 , -0.5,0,0 }; float3 squarerot[3];
float3 vertexarr[80]; float counter = 0;
float3 up = { 0 , 1 , 0 };
float3 axis = cross(v[0].Normal, up);
float dt = dot(v[0].Normal, up);
float angle = acos(dt);
float3 offset = { 0, -1, 0 };
float3 offset2 = { -1, 0, 0 };
float3 vertexloc[90]; float ctr;
float3 p0 = v[0].Position;
float3 p1 = v[0].Position + (v[0].Normal * 5) + ((sin(time * 10)) * (-offset2 * 0.5));
float3 p3 = v[0].Position + (v[0].Normal * 10) + (0.5 * (sin(time * 10)) + 0.5 * 3 * offset) + (4 * offset);
float3 p2 = p3 - (5 * v[0].Normal);
float3x3 rot =
{
cos(angle) + axis.x * axis.x * (1 - cos(angle)) ,
axis.x * axis.y * (1 - cos(angle)) - axis.z * sin(angle),
axis.x * axis.z * (1 - cos(angle)) + axis.y * sin(angle),
axis.y * axis.x * (1 - cos(angle)) + axis.z * sin(angle),
cos(angle) + axis.y * axis.y * (1 - cos(angle)),
axis.y * axis.z * (1 - cos(angle)) - axis.x*sin(angle),
axis.z * axis.x * (1 - cos(angle)) - axis.x * sin(angle),
axis.z * axis.y * (1 - cos(angle)) + axis.x * sin(angle),
cos(angle) + axis.z * axis.z * (1 - cos(angle))
};
for (int c = 0; c < 3; c++)
{
squarerot[c] = 0.120*mul(square[c], rot);
}
for (int i = 0; i < 30; i++)
{
float3 extrusion = sin(time) * i * v[0].Normal;
for (int c = 0; c < 3; c++)
{
float3 bezierloc = CalculateBezierPoint(i*0.03333333, p0, p1, p2, p3);
vertexloc[ctr++] = squarerot[c] + bezierloc;
}
}
int resetctr = 0;
float s = 10;
float brightness = 1;
for (int i = 0; i < 87; i++)
{
color.r = pow(cos(vertexloc[i].y + (time *s)) * (brightness), 3);
color.g = pow(cos((vertexloc[i].y - 0.5) + (time*s)) * (brightness), 3);
color.b = pow(cos((vertexloc[i].y - 1) + (time*s)) * (brightness), 3);
CreateVertex(triStream, vertexloc[i], normal[0], color);
color.r = pow(cos(vertexloc[i + 3].y + (time *s)) * (brightness), 3);
color.g = pow(cos((vertexloc[i + 3].y - 0.5) + (time*s)) * (brightness), 3);
color.b = pow(cos((vertexloc[i + 3].y - 1) + (time*s)) * (brightness), 3);
CreateVertex(triStream, vertexloc[i + 3], normal[0], color);
if (++resetctr == 3) { triStream.RestartStrip(); resetctr = 0; }
}
}
[maxvertexcount(93)]
void WireGenerator(triangle VS_DATA v[3], inout TriangleStream triStream)
{
float4 color = 0;
color.a = 1;
float s = 10;
float brightness = 1;
float wireframesize = size / (7+sin(time*4));
//TriangleSides
float3 vec1 = v[0].Position - v[1].Position;
float3 vec2 = v[1].Position - v[2].Position;
float3 vec3 = v[0].Position - v[2].Position;
float3 offsetdir1 = normalize(cross(vec1, v[0].Normal)) * wireframesize;
float3 offsetdir2 = normalize(cross(vec2, v[1].Normal)) * wireframesize;
float3 offsetdir3 = normalize(cross(vec3, v[2].Normal)) * wireframesize;
//Jiggle
//Move Vertices
v[0].Position.x += cos((v[0].Position.y ) + (time *s)) * xscale;
v[0].Position.y += cos((v[0].Position.y ) + (time *s)) * yscale;
v[1].Position.x += cos((v[1].Position.y ) + (time *s)) * xscale;
v[1].Position.y += cos((v[1].Position.y ) + (time *s)) * yscale;
v[2].Position.x += cos((v[2].Position.y ) + (time *s)) * xscale;
v[2].Position.y += cos((v[2].Position.y ) + (time *s)) * yscale;
color.r += cos((v[0].Position.y ) + (time *s)) * brightness;
color.g += cos((v[0].Position.y ) -0.5+(time*s)) * brightness;
color.b += cos((v[0].Position.y ) -1+ (time*s)) * brightness;
brightness = 0.2;
//WireFrame
float4 color1 = 0;
float4 color2 = 0;
float4 color3 = 0;
color.r += cos((v[0].Position.y ) + (time *s)) * brightness;
color.g += cos((v[0].Position.y ) - 0.5 + (time*s)) * brightness;
color.b += cos((v[0].Position.y ) - 1 + (time*s)) * brightness;
brightness = 1;
color1.r += cos((v[0].Position.y ) + (time *s)) * brightness;
color1.g += cos((v[0].Position.y) - 0.5 + (time*s)) * brightness;
color1.b += cos((v[0].Position.y ) - 1 + (time*s)) * brightness;
color2.r += cos((v[0].Position.y ) + (time *s)) * brightness;
color2.g += cos((v[0].Position.y ) - 0.5 + (time*s)) * brightness;
color2.b += cos((v[0].Position.y ) - 1 + (time*s)) * brightness;
color3.r += cos((v[0].Position.y) + (time *s)) * brightness;
color3.g += cos((v[0].Position.y ) - 0.5 + (time*s)) * brightness;
color3.b += cos((v[0].Position.y ) - 1 + (time*s)) * brightness;
color1.a = 0.75*abs(cos(time)); color2.a = 0.75*abs(cos(time));color3.a = 0.75*abs(cos(time));
CreateVertex(triStream, v[0].Position + offsetdir1, v[0].Normal, color1);
CreateVertex(triStream, v[1].Position + offsetdir1, v[0].Normal, color2);
CreateVertex(triStream, v[0].Position - offsetdir1, v[0].Normal, color1);
triStream.RestartStrip();
CreateVertex(triStream, v[1].Position + offsetdir2, v[0].Normal, color2);
CreateVertex(triStream, v[2].Position + offsetdir2, v[0].Normal, color3);
CreateVertex(triStream, v[1].Position - offsetdir2, v[0].Normal, color2);
triStream.RestartStrip();
CreateVertex(triStream, v[0].Position + offsetdir3, v[0].Normal, color1);
CreateVertex(triStream, v[2].Position + offsetdir3, v[0].Normal, color3);
CreateVertex(triStream, v[0].Position - offsetdir3, v[0].Normal, color1);
triStream.RestartStrip();
//Extruded pass
color1.a = 0.5*abs(cos((time))); color2.a = 0.5*abs(cos((time))); color3.a = 0.5*abs(cos((time)));
CreateVertex(triStream, v[0].Position + offsetdir1 +( 2 * v[0].Normal), v[0].Normal, color1);
CreateVertex(triStream, v[1].Position + offsetdir1 + (2 * v[1].Normal), v[1].Normal, color2);
CreateVertex(triStream, v[0].Position - offsetdir1 + (2 * v[0].Normal), v[0].Normal, color1);
triStream.RestartStrip();
CreateVertex(triStream, v[1].Position + offsetdir2 + (2 * v[1].Normal), v[1].Normal, color2);
CreateVertex(triStream, v[2].Position + offsetdir2 + (2 * v[2].Normal), v[2].Normal, color3);
CreateVertex(triStream, v[1].Position - offsetdir2 + (2 * v[1].Normal), v[1].Normal, color2);
triStream.RestartStrip();
CreateVertex(triStream, v[0].Position + offsetdir3 + (2 * v[0].Normal), v[0].Normal, color1);
CreateVertex(triStream, v[2].Position + offsetdir3 + (2 * v[2].Normal), v[2].Normal, color3);
CreateVertex(triStream, v[0].Position - offsetdir3 + (2 * v[0].Normal), v[0].Normal, color1);
triStream.RestartStrip();
//Tesselated Wireframe
//Tesselation step
float3 avgnormal = (v[0].Normal + v[1].Normal + v[2].Normal) / 3;
//Vectors betweem points:
float3 vec[3] = { v[1].Position - v[0].Position ,v[2].Position - v[1].Position, v[0].Position - v[2].Position };
//New points :
float3 n[3] = { v[0].Position + ((vec[0]) * 0.5) , v[1].Position + (vec[1] * 0.5), v[2].Position + (vec[2] * 0.5) };
//Vectors between new points
float3 vecN[3] = { n[1] - n[0], n[2] - n[1], n[0] - n[2] };
for (int i = 0; i < 3; i++) { vecN[i] = normalize(vecN[i]); };
color.r = cos((n[0].y ) + (time *s)) * brightness;
color.g = cos((n[0].y ) - 0.5 + ((time)*s)) * brightness;
color.b = cos((n[0].y ) - 1 + ((time)*s)) * brightness;
color.a = abs( cos((time) ));
wireframesize *= 0.5;
offsetdir1 = normalize(cross(vecN[0], avgnormal)) * wireframesize;
offsetdir2 = normalize(cross(vecN[1], avgnormal)) * wireframesize;
offsetdir3 = normalize(cross(vecN[2], avgnormal)) * wireframesize;
//2 :
color.a = 0.25*abs(cos((time)));
CreateVertex(triStream, n[1] + offsetdir1, avgnormal, color);
CreateVertex(triStream, n[0] + offsetdir1, avgnormal, color);
CreateVertex(triStream, n[1] - offsetdir1, avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[2] + offsetdir2, avgnormal, color);
CreateVertex(triStream, n[1] + offsetdir2, avgnormal, color);
CreateVertex(triStream, n[2] - offsetdir2, avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] + offsetdir3, avgnormal, color);
CreateVertex(triStream, n[2] + offsetdir3, avgnormal, color);
CreateVertex(triStream, n[0] - offsetdir3, avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[1] - offsetdir1, avgnormal, color);
CreateVertex(triStream, n[0] + offsetdir1, avgnormal, color);
CreateVertex(triStream, n[0] - offsetdir1, avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[2] - offsetdir2, avgnormal, color);
CreateVertex(triStream, n[1] + offsetdir2, avgnormal, color);
CreateVertex(triStream, n[1] - offsetdir2, avgnormal, color);
triStream.RestartStrip();
CreateVertex(triStream, n[0] - offsetdir3, avgnormal, color);
CreateVertex(triStream, n[2] + offsetdir3, avgnormal, color);
CreateVertex(triStream, n[2] - offsetdir3, avgnormal, color);
triStream.RestartStrip();
//Basic original geometry
float MinVisibility = 0.5;
brightness = 1;
color.r = pow(cos((v[0].Position.y ) + (time *s)) * (brightness), 3);
color.g = pow(cos((v[0].Position.y - 0.5) + (time*s)) * (brightness), 3);
color.b = pow(cos((v[0].Position.y - 1) + (time*s)) * (brightness),3);
color.a = sin(time) + abs(sin(time)) + ( cos(time)) + ((color.r + color.b + color.g) / 3 - 0.5);
color.rgb *= 0.6;
CreateVertex(triStream, v[0].Position, v[0].Normal, color);
color.r = pow(cos((v[1].Position.y) + (time *s)) * (brightness), 3);
color.g = pow(cos((v[1].Position.y - 0.5) + (time*s)) * (brightness), 3);
color.b = pow(cos((v[1].Position.y - 1) + (time*s)) * (brightness), 3);
color.rgb *= 0.6;
CreateVertex(triStream, v[1].Position, v[0].Normal, color);
color.r = pow(cos((v[2].Position.y) + (time *s)) * (brightness), 3);
color.g = pow(cos((v[2].Position.y - 0.5) + (time*s)) * (brightness), 3);
color.b = pow(cos((v[2].Position.y - 1) + (time*s)) * (brightness), 3);
color.rgb *= 0.6;
CreateVertex(triStream, v[2].Position, v[2].Normal, color);
triStream.RestartStrip();
brightness = 1;
color.rgb = 0.1;
color.a = 0.01;
CreateVertex(triStream, v[0].Position, v[0].Normal, color);
CreateVertex(triStream, v[1].Position, v[0].Normal, color);
CreateVertex(triStream, v[2].Position, v[0].Normal, color);
triStream.RestartStrip();
}
[maxvertexcount(75)]
void ShellGenerator(triangle VS_DATA v[3], inout TriangleStream triStream)
{
//Shells & fins fur without fins. adds fuzzyness
float s = 10;
float brightness = 1;
float MinVisibility = 0.5;
float4 color[3];
v[0].Position.x += cos((v[0].Position.y) + (time *s)) * xscale;
v[0].Position.y += cos((v[0].Position.y) + (time *s)) * yscale;
v[1].Position.x += cos((v[1].Position.y) + (time *s)) * xscale;
v[1].Position.y += cos((v[1].Position.y) + (time *s)) * yscale;
v[2].Position.x += cos((v[2].Position.y) + (time *s)) * xscale;
v[2].Position.y += cos((v[2].Position.y) + (time *s)) * yscale;
for (int i = 0; i < 3; i++)
{
color[i].r = pow(cos((v[0].Position.y-0)+ (time *s))* (brightness + 0), 5);
color[i].g = pow(cos((v[0].Position.y-0.5) + ((time)*s))* (brightness + 0), 5);
color[i].b = pow(cos((v[0].Position.y-1) + ((time)*s)) * (brightness + 0), 5);
color[i].a = sin(time);
color[i].a = color[i].a*0.8;
color[i].rgb *= 0.7;
color[i].rgb += 0.4;
}
float scalar = 0;
float FurPasses = 25;
float3 extrusion = 0;
for (int j = 0; j < FurPasses; j++)
{
scalar = j * 0.025;
scalar = pow(scalar, 3);
for (int i = 0; i < 3; i++)
{
color[i] *= 1 - scalar;
extrusion = (j*v[i].Normal * 0.05 + (0.001*j*float3(0,-1,0)));
CreateVertexUV(triStream, v[i].Position + extrusion, v[i].Normal, color[i], v[i].TexCoord);
}
triStream.RestartStrip();
}
}
//***************
// PIXEL SHADER *
//***************
float4 MainPS(GS_DATA input) : SV_TARGET
{
input.Normal= -normalize(input.Normal);
return float4(input.Color.rgb, input.Color.a);
}
float4 MainPSUV(GS_DATA_UV input) : SV_TARGET
{
input.Normal= normalize(input.Normal);
float alpha =0;
alpha = m_TextureDiffuse.Sample(samLinear, input.TexCoord).x * input.Color.a;
if (alpha < 0.005) discard;
return float4(input.Color.rgb,alpha);
}
//*************
// TECHNIQUES *
//*************
technique10 DefaultTechnique
{
pass p0 {
SetRasterizerState(NoCulling);
SetBlendState(EnableBlending, float4(0.0f, 0.0f, 0.0f, 0.0f), 0xFFFFFFFF);
SetDepthStencilState(EnableDepthDisableWriting, 0);
SetVertexShader(CompileShader(vs_4_0, MainVS()));
SetGeometryShader(CompileShader(gs_4_0, WireGenerator()));
SetPixelShader(CompileShader(ps_4_0, MainPS()));
}
pass p1 {
SetRasterizerState(FrontCulling);
SetBlendState(EnableBlending, float4(0.0f, 0.0f, 0.0f, 0.0f), 0xFFFFFFFF);
SetDepthStencilState(DepthWriting, 0);
SetVertexShader(CompileShader(vs_4_0, MainVS()));
SetGeometryShader(CompileShader(gs_4_0, ShellGenerator()));
SetPixelShader(CompileShader(ps_4_0, MainPSUV()));
}
pass p2 {
SetRasterizerState(NoCulling);
SetBlendState(EnableBlending, float4(0.0f, 0.0f, 0.0f, 0.0f), 0xFFFFFFFF);
SetDepthStencilState(DepthWriting, 0);
SetVertexShader(CompileShader(vs_4_0, MainVS()));
SetGeometryShader(CompileShader(gs_4_0, ExplosionGenerator()));
SetPixelShader(CompileShader(ps_4_0, MainPS()));
}
pass p3 {
SetRasterizerState(NoCulling);
SetBlendState(EnableBlending, float4(0.0f, 0.0f, 0.0f, 0.0f), 0xFFFFFFFF);
SetDepthStencilState(DepthWriting, 0);
SetVertexShader(CompileShader(vs_4_0, MainVS()));
SetGeometryShader(CompileShader(gs_4_0, BezierGenerator()));
SetPixelShader(CompileShader(ps_4_0, MainPS()));
}
}
